THE WORLD'S GREATEST
MOTORCYCLIST.
REBORN.

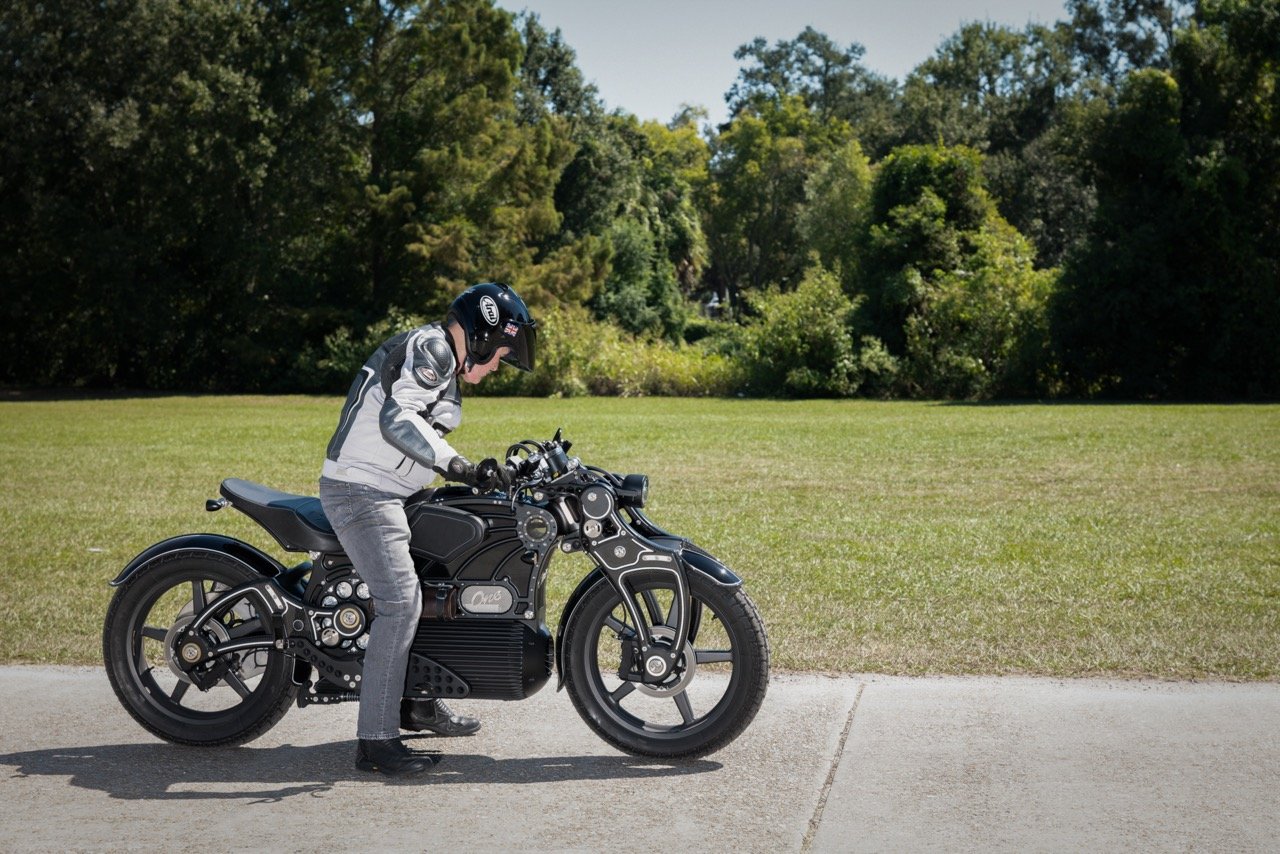

CURTISS WARHAWK
The most powerful big block air-cooled v-twins in history, as an homage to the original Hellrider and our founder, Glenn Curtiss.

LIMITED TO 35 EXAMPLES
Engine
Air/oil-cooled triple-camshaft ohv pushrod dry-sump 56.25ยบ V-twin
four-stroke, with one-piece forged crankshaft, two valves per cylinder, toothed
belt camshaft drive, and machined 6061-T6 aluminium billet crankcases
Dimensions
111.76 x 111.76 mm (4.40 x 4.40 in.)
Capacity
2,163cc (132 cubic inch)
output
150 bhp at 5,100 rpm (at rear wheel)
Max Torque
217Nm/160ft-lb at 2,000 rpm
compression ratio
10.3:1
fuel/ignition system
Closed-loop Delphi electronic fuel injection and engine management system, with single injector per cylinder, and 2 x 51mm S&S throttle body
transmission
5-speed Curtiss stacked gearbox with Andrews gears, 45mm/1.75in belt primary drive, and hydraulically operated Bandit multiplate dry clutch
chassis
Machined modular 6061-T6 aluminium monocoque, with 7.0in diameter backbone containing fuel load, presented in raw aluminium finish
suspension
Front:
Double-wishbone parallelogram fork with tubular aluminium struts and direct-action, race-proven RaceTech monoshock, fully-adjustable for high and low speed compression and rebound damping, and offering 114mm/4.35inwheel travel

Rear:
Fabricated aluminium swingarm with cantilever RaceTech monoshock offering two-speed compression and rebound damping, and 140mm/5.50in wheel travel
head angle/trail
27.5 degrees/106mm
Wheelbase
1,588mm/62.5 in.
Weight/Distribution
570lb with oil + 3.75 US gallon of fuel, with 48/52% distribution
brakes
Front:
2 x 230 mm Beringer floating Aeronal cast iron discs with four-piston Beringer radially-mounted Aerotec calipers

Rear:
1 x 240 mm cross-drilled Aeronal stainless steel disc with two-piston Beringer caliper
Wheels/tyres
Front:
160/70VR18 Michelin on 3.50 in. BST carbon wheel

Rear:
240/45VR18 Michelin on 8.50 in. BST carbon wheel
seat height
724mm/29.5 in.
fuel capacity
3.75 US gallons/16.25 litres
top speed
165mph+
price
$105,000 usd
